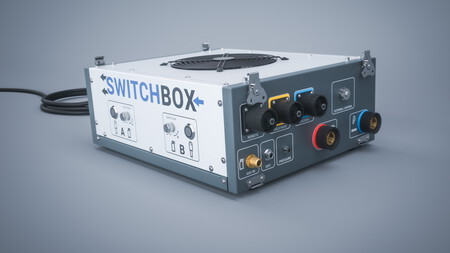

EVO Switchbox

Switchbox for welding with two welding heads. To increase productivity, the switch box can be used to weid alternately in conjunction with a controller from the EVO series with two weid heads. All welding tools can be used, i.e., enclosed weid and open frame weid heads, turn tables or tube-to-tube sheet weid heads, gas or water cooled, with or without wire feed or AVC. By pressing the start button on the weid head, the welding program suitable for the respective weid head will get loaded. The weid head that is not being used is locked and can get prepared for the next welding.

Technical Data:

• Mains voltage 100-240V (0,6-0,3A)
• Mains frequency 50 / 60 Hz
• Switching capacity: 24V 200A (100% ED)
• Protection class: IP 23
• Dimensions: (L x W x H) 500 x 340 x 160 mm
• Weight 7.8 kg

Package includes:

• Switchbox
• Control cables, gas hose, welding cables from EVO series to Switchbox
