Tigtronic Series

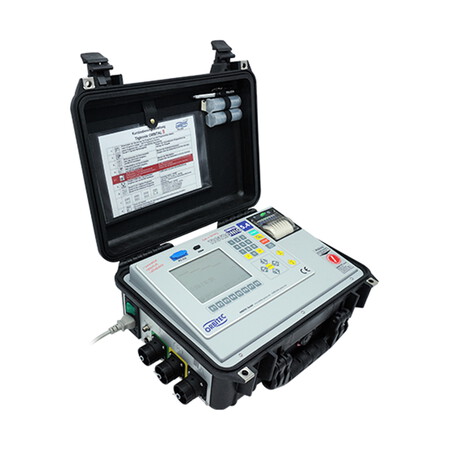

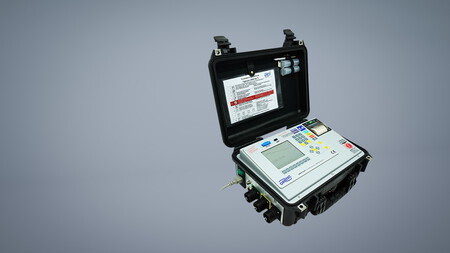

The 5th generation of our reliable, tried-and-tested standard controller. Can be connected to TETRIX 200 or TETRIX 351.

• 5.7″ display
• Very easy guided multilingual user interface with programming guide (outer tube diameter, wall thickness and welding head ID)
• Gas-cooling and water-cooling monitoring
• Orbital tack mode can be activated
• Option for welding in up to 6 sectors, continuously or in step mode
• Individual changing of the calculated program parameters, also with the current percentage button
• Changing of the current and wire feed parameters possible, also during welding
• Diagram of the weld progress
• Real-time monitoring of the welding parameters
• Integrated day counter (allocation to isometries and weld numbers)
• Stores up to 99 welding programs
• Stores up to 400 actual parameters
• Data transfer of welding parameters and programs via USB port
• Software updates possible via USB
• Troubleshooting program
• Option for connecting a remote control (device can be controlled from the display without a remote control)
• Option for connecting oxygen analysers and a purge pressure analyser
• Integrated wire card
• Integrated thermal printer (longlife paper) with multilingual printout of the actual/target parameters
• Compact and lightweight with outer dimensions (L x W x H) of 405 x 325 x 170 mm and a weight of only 6.5 kg
• Autorange 90 – 260 V

Optional:

• COOL 50 or EVO COOL cooling unit
• AVC upgrade kit

Scope of supply:

• Controller
• Mains cable
• Interface for cable controller <> power source
• USB flash drive (1 GB)
• 2 storage containers for electrodes
• Ballpoint pen with touchscreen function and LED light

8-m cable remote control for all orbital welding controllers.

• Activate and deactivate the welding process
• Control the rotation
• Control the wire feed
• Control the AVC
• Visual status display

For all Tigtronic controllers for backing up, managing and editing the weld documentation (actual/target parameters) on a PC, in German and English

Paper rolls for integrated printer, pack of 3

Colour ribbon cartridge for TIGTRONIC ORBITAL 4 integrated printer

The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.

Important: This pressure regulator has a constant working pressure of 2.5 bar to protect the orbital system’s gas flow sensor.

Control range:

• Twin flow 1 – 15 l/min, 3 – 25 l/min
• Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min

The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.

Important: This pressure regulator has a constant working pressure of 2.5 bar to protect the orbital system’s gas flow sensor.

Control range:

• Twin flow 1 – 15 l/min, 3 – 25 l/min
• Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min

Pressure regulators with different connections and for use with other gas types / mixed or nickel-plated available on request.

(for RBK 60 S pneumatic connection)

incl. mounting bracket and inlet and outlet coupling (for RBK 60 S pneumatic connection). Pressure regulators with different connections and for other gas types or nickel-plated version available on request.

Lenght 3 m

Lenght: 5 m / Size: 35 mm² / Voltage: up to 530 A

Lenght: 5 m / Size: 50 mm² / Voltage: up to 500 A
